1880mm Type 50T Cylinder Mould Testliner Paper Making Machine
Date: 2020-08-15 Views: 129

1880mm Type 50T Cylinder Mould Testliner Paper Making Machine

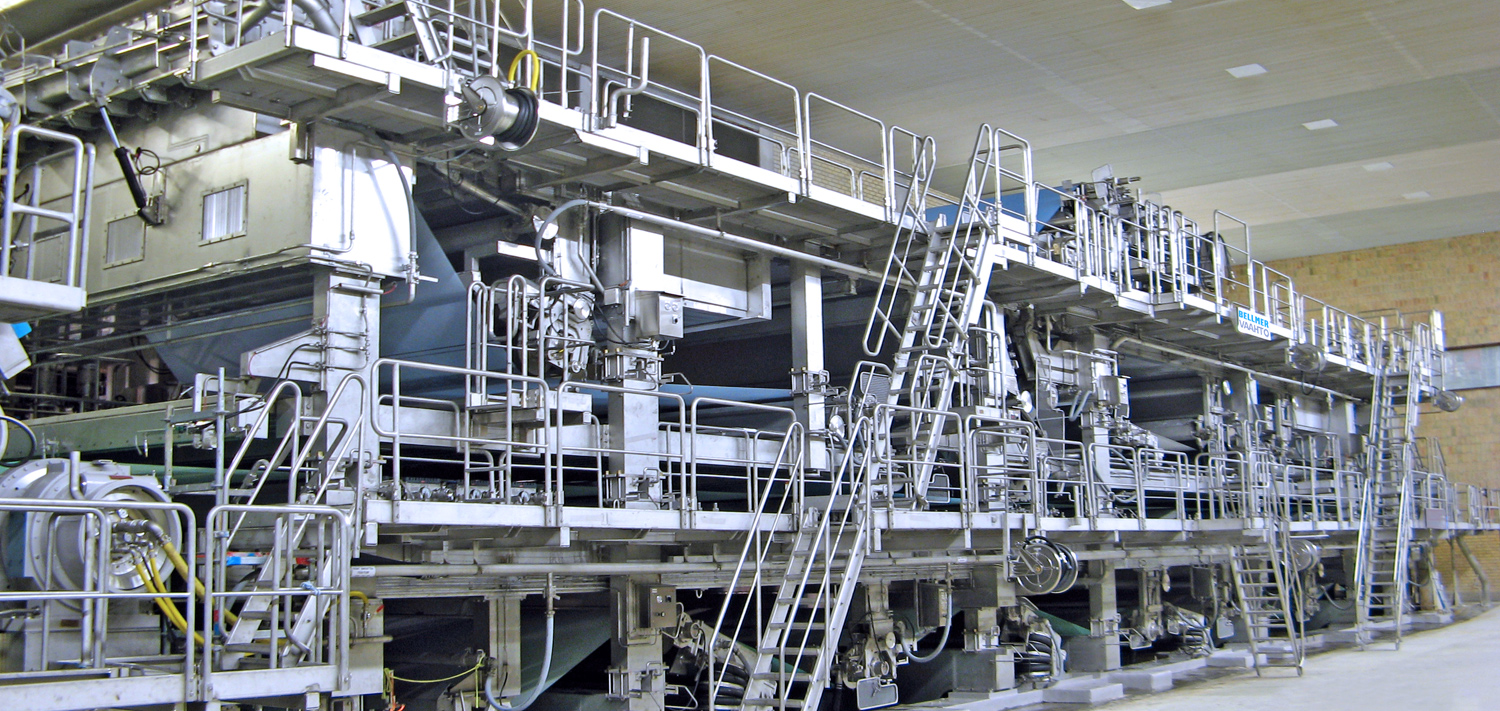

This technical proposal is oriented to the complete system of paper machine in the project of 1880 double-wire multi-cylinder paper machine. It accurately, clearly and completely describes the technical requirements of users in the paper machine system, and gives the technical program of the project so that our company and your company can discuss and exchange technology

This machine is used to 90-150g/m2 fluting paper machine. It is composed of long web forming part, press part, dry cadre, roll paper part, transmission part, base part, hood part and so on.

Wire section adopts 4 cylinder mould forming.

Pressure section made of 1 set large diameter roller pressure and 1 set K-type pressure

Drying section adopts 18 sets φ1800mm cylinder dryersThe grouping arrangement is as follows:6+6+sizing machine+6.

 paper winding section adopts horizontal pneumatic cylinder rewinding machine.

The transmission section adopts segment transmission and AC frequency conversion speed control




Technical Parameters


Output

Test liner paper

Trimmed width

1880mm

GSM

90-150g/m2

Design speed

180m/min

Working speed

120-150m/min

Balance speed

250m/min

crawling speed

25m/min

Capacity

50T/D

Gauge

2800mm

Transmissions type

AC frequency

 Division transmission

layout types

one Floor

 arrangement

Operation form

Left(right)-hand operation

Paper amplitude shrinkage

3%-4%

Finished wire part:

20-21%

Finished press part:

42-44%



Finished drying part:

92%





Paper machine technological process

Cylinder mould forming section1 set large roller presses1set K-type pressure(φ750/φ750/φ700 12 setsφ1800 dryerSizing machine (φ600/φ600)6 setsφ1800 dryercalender horizontal reel machineRewinder

Scope of supply

The supplier's supply limit is bounded by the first flange (or rib or hose connection) outside the equipment. The air control part is bounded by the inlet of the gas control box; the headbox is bounded by the flange end of the large end feed taper pipe; the vacuum element is bounded by the interface flange of the body; the steam cover is bounded by the exhaust port flange; and wiring and gas pipelines for papermaking are not included in the scope of supply.
